Seamless Orchestration on IBM Cloud: A Professional Guide to Deploying IBM Sterling OMS on Red Hat OpenShift

Introduction: The Strategic Value of Containerized Order Management

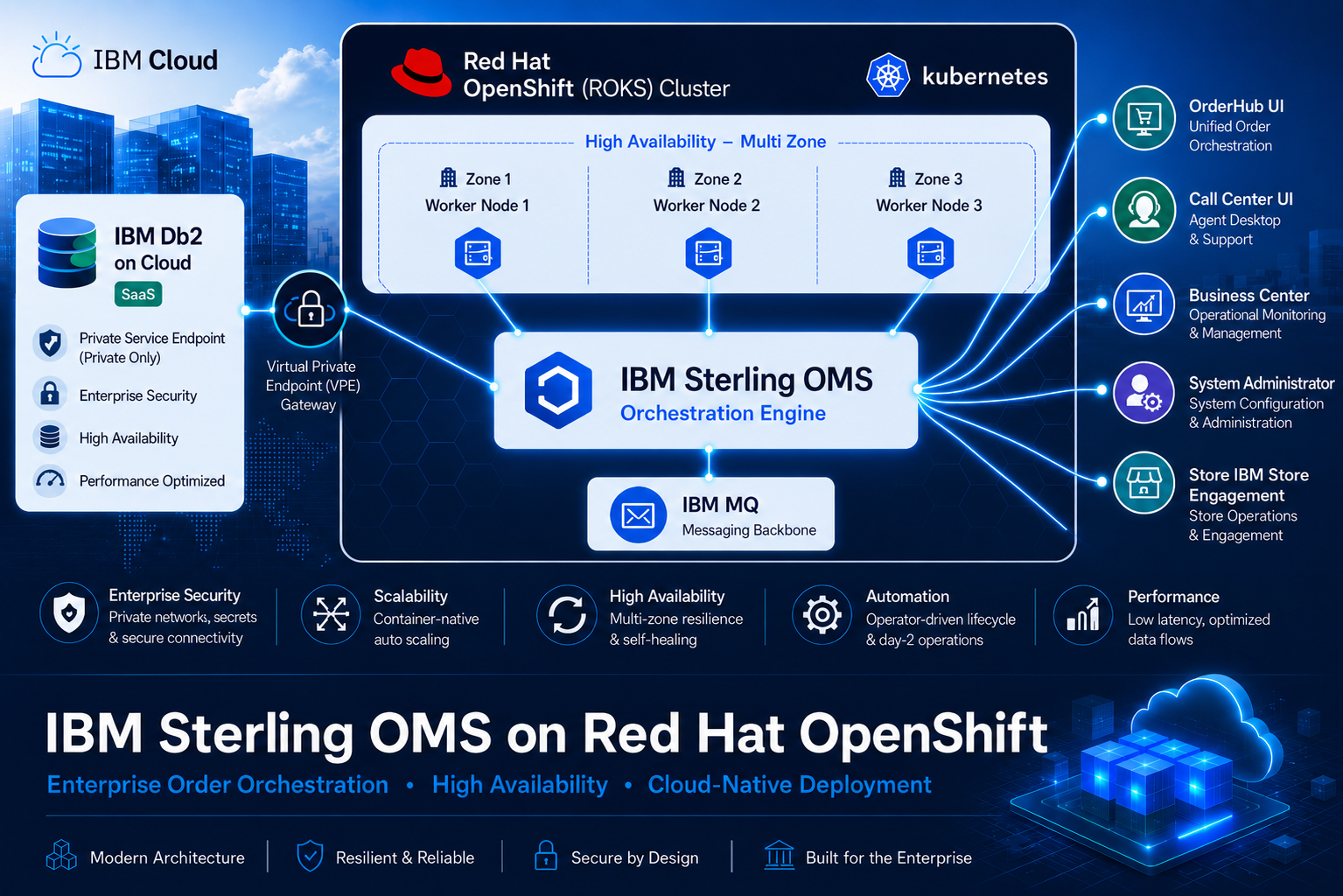

Architectural vision: This represents a hardened, multi-zone IBM Sterling OMS ecosystem. At the core, the OMS engine resides within a Red Hat OpenShift (ROKS) cluster, orchestrating data flows between a DB2 SaaS instance (secured via a VPE Gateway over a private backbone), an in-cluster IBM MQ messaging tier, and modern OrderHub and Call Center micro-frontends. Strategic integration is maintained through high-performance data channels, ensuring millisecond-latency communication between the stateful database tier and the containerized application layer.

IBM Sterling Order Management System (OMS) is the definitive enterprise platform for omnichannel orchestration, providing a unified view of inventory, fulfillment, and returns. In today's high-velocity retail environment, deploying OMS on Red Hat OpenShift (ROKS) is a strategic move that transcends simple hosting.

By adopting a Kubernetes-native architecture, enterprises unlock granular scalability and architectural resilience. The centerpiece of this modernization is the IBM Sterling OMS Operator (v1.9.0). This operator manages the entire lifecycle of the environment—from automated schema creation to seamless version upgrades—ensuring the stack remains in a desired state of health. This reduces operational risk and allows DevOps teams to shift their focus from manual maintenance to high-value architectural optimization.

Infrastructure Foundations: Cluster and Database Provisioning

A robust infrastructure foundation is critical for enterprise order fulfillment. For high-volume transaction processing, a Multi-zone High Availability (HA) configuration is mandatory to protect against localized data center outages and ensure consistent global availability.

Step 1: Creating the ROKS Cluster on IBM Cloud

We begin by provisioning a VPC-gen2 cluster. To satisfy enterprise HA requirements, the configuration utilizes a 3-worker-node setup across three distinct zones (e.g., us-south-1, 2, and 3).

              ibmcloud oc cluster create vpc-gen2 \
  --name mycluster-oms \
  --zone us-south-1 \
  --vpc-id <vpc-id> \
  --subnet-id <subnet-id-zone1> \
  --flavor bx2.8x32 \
  --workers 1 \
  --version 4.20_openshift \
  --cos-instance <cos-instance-crn>


Note: Ensure workers are added to additional zones using the ibmcloud oc zone add command to complete the multi-zone topology.

Step 2: Provisioning DB2 on Cloud

Utilizing DB2 as a SaaS instance offloads the management of the persistence layer while maintaining enterprise performance. The instance must be configured with a Private-only service endpoint to ensure data never traverses the public internet. Following provisioning, the OMDB schema is established to house the application data.

Step 3: Configuring the VPE Gateway

The Virtual Private Endpoint (VPE) Gateway is the security linchpin, providing a private IP within the VPC to communicate with the DB2 instance. This ensures low-latency performance over the IBM Cloud private backbone.

              oc run db2-vpe-test --image=busybox -it --rm --restart=Never -- \
  nc -zv <db2-vpe-hostname> 32733


With the infrastructure backbone secured, we transition to the specific configuration and security readiness required for the OMS application stack.

Environment Readiness: Secrets, Storage, and Entitlement

Effective DevOps requires a "Shift-Left" approach to security and storage. Pre-staging these components ensures that the automated deployment pipeline encounters zero friction during the pod initialization phase.

Step 4: Obtaining the IBM Entitlement Key

Access to the IBM Container Software Library is essential for pulling proprietary images from cp.icr.io.

              podman login cp.icr.io -u cp -p '<YOUR_ENTITLEMENT_KEY>'
skopeo inspect docker://cp.icr.io/cp/ibm-oms-enterprise/om-app:10.0.2604.1-amd64 | grep Digest


Step 5: Establishing Cluster Connectivity

Configure your local CLI environment to target the ROKS cluster for administrative operations:

              ibmcloud oc cluster config --cluster mycluster-oms --admin


Step 6: Namespace and Persistent Storage Setup

Stateful OMS workloads require a dedicated oms namespace and high-performance storage. We utilize the ibmc-vpc-block-10iops-tier storage class to provision a 50Gi Persistent Volume Claim (PVC) for shared application data and logs.

Step 7: Defining Kubernetes Secrets

Three core secrets must be defined:

• ibm-entitlement-key: For registry authentication.
• oms-db-secret: Housing dbUser, dbPassword, dbHostname, and dbSchema.
• oms-secret: Containing application console credentials and keystore passwords.

Step 8: Provisioning Required Files to the PVC

The OMS application server requires external drivers and certificates to be present on the storage volume. Using a temporary helper pod, inject the following files into the /data directory:

              oc cp db2jcc4.jar oms/pvc-helper:/data/
oc cp db2jcc_license_cu.jar oms/pvc-helper:/data/
oc cp DigiCertGlobalRootCA.crt oms/pvc-helper:/data/


Crucial: The db2jcc_license_cu.jar is required for DB2 SaaS connectivity; failure to include it will result in connection licensing errors.

This environment preparation ensures the cluster is ready for the automated deployment and reconciliation capabilities of the Operator.

The Brain of the Operation: Installing the IBM Sterling OMS Operator

The Kubernetes Operator pattern provides a dynamic lifecycle controller. It doesn't just install the software; it actively reconciles the environment, ensuring that the actual state of the deployment matches the desired architectural configuration.

Step 9: Operator Installation via OperatorHub

We first register the IBM catalog within the OpenShift marketplace to expose the OMS operator to the cluster.

The Operator installation is complete once the ClusterServiceVersion (CSV) reaches the Succeeded phase, signaling readiness to deploy the core application environment.

Core Deployment: Orchestrating the OMS Environment and UIs

The OMEnvironment Custom Resource (CR) is the definitive manifest that transforms the cluster into a complex, multi-component ecosystem.

Step 10: Creating the OMEnvironment CR

When applied, the Operator reads this manifest to trigger database schema creation and deploy the Liberty-based application servers. Key configuration blocks:

• License: Acceptance of terms and Call Center flags.
• Database: VPE Hostname, port (32733), and the OMDB schema.
• Storage: Direct mapping to the oms-pvc.

Step 11: Base Installation: Available User Interfaces

Once the OMEnvironment CR is deployed and the OpenShift route is created, the IBM Sterling OMS base installation provides several web-based user interfaces out-of-the-box. These UIs are part of the core OMS application server and are accessible immediately—before deploying the modern OrderHub and Call Center components.

All UIs are served from the same base URL: https://oms.<ingress-domain>

• /smcfs/console/home.detail — Application Console (Main admin console for system administration, agents, organizations, and rules)
• /sbc/sbc — Business Center (Self-service interface for pricing, promotions, and business rules)
• /sma/sma — System Administrator (Runtime management, health monitoring, and operational oversight)
• /wsc — Store Engagement (Store associate interface for in-store order management)

Step 12: Deploying the OrderHub UI

OrderHub is the modern, React-based user interface for IBM Sterling OMS, designed for enhanced visibility and management of orders and inventory. Unlike the base application, OrderHub is deployed as a separate Custom Resource (CR) managed by the same IBM Sterling OMS operator.

To install OrderHub, follow these primary steps:

• Verify Image Availability: Use skopeo to ensure that both the om-orderhub-base and om-orderhub-ext images (version 10.0.2604.1-amd64) are accessible in the IBM Container Registry using your entitlement key.
• Configure the OrderHub CR: Create an orderhub.yaml file. Key configurations include setting license.accept to true, providing the adminURL (the route of your primary OMS application), and specifying the base and extension images. Ensure the ingress.host is set to your desired OrderHub domain.
• Deploy the Resource: Perform a dry run to validate the YAML, then apply the configuration to your cluster. The operator will then provision the necessary pods and services.
• Monitor Progress: Observe the pods in your namespace. The installation is complete once both the orderhub-orderhub and orderhub-orderhubext pods reach a 1/1 Running status.

Once the pods are active, the operator automatically handles the creation of the required Ingress and Route resources to make the UI accessible via your defined hostname.

Step 13: Deploying the Call Center UI

The Call Center CR provides the customer service interface. Actionable requirement: You must set acceptCallCenterStore: true within the license block of the CR; omission of this flag will prevent the deployment from reaching a healthy state.

With the interfaces deployed, the architecture is completed by configuring the messaging backbone and performance optimizations.

Messaging and Optimization: IBM MQ and Agent Configuration

IBM MQ provides the critical asynchronous messaging layer for order processing. In an enterprise environment, tuning these agents is essential for maintaining throughput.

Step 14: Deploying Standalone IBM MQ

A containerized IBM MQ instance (OMSQM) is deployed within the cluster. We must configure Channel Authentication (CHLAUTH) to allow internal pod connectivity via the OMS.SVRCONN channel.

MQ Management Route: Access to the MQ Web Console requires a reencrypt route to handle internal HTTPS:

              oc create route reencrypt mq-console --service=oms-mq-ibm-mq --port=9443 --hostname=mq-console.${INGRESS_DOMAIN} -n oms


Step 15: Integrating MQ and Tuning Agents

To ensure production stability, we apply critical overrides and lock the configuration to prevent the Operator from reverting these manual optimizations.

Apply JNDI and Timezone Overrides

              oc set env deployment/oms-agent-defaultagent -n oms TZ=Asia/Kolkata ADDNL_JVM_OPTS="-Dyfs.agent.override.icf=com.sun.jndi.fscontext.RefFSContextFactory -Dyfs.agent.override.qcf=AGENT_QCF -Dyfs.agent.override.providerurl=file:/opt/ssfs/.bindings"


Patch Readiness Probes

Standard probes often kill slow-starting agents. Switch to TCP probes on port 8001 with a 180s delay:

              oc patch deployment oms-agent-defaultagent -n oms --type=json -p='[ {"op":"replace","path":"/spec/template/spec/containers/0/readinessProbe", "value":{"tcpSocket":{"port":8001},"initialDelaySeconds":180,"periodSeconds":30}}]'


Apply Reconciliation Lock

Without this annotation, the Operator will overwrite your manual tuning during its next reconciliation cycle:

              oc annotate deployment oms-agent-defaultagent -n oms apps.oms.ibm.com/auto-managed=no --overwrite


Operational Verification and Summary

A final inventory of the deployed stack ensures all components are balanced and communicating.

Final Pod Inventory

Access Directory

• OMS Application Console: https://oms.${INGRESS_DOMAIN}/smcfs/console/login.jsp
• OrderHub: https://oms.${INGRESS_DOMAIN}/order-management
• Call Center: https://oms.${INGRESS_DOMAIN}/call-center
• MQ Web Console: https://mq-console.${INGRESS_DOMAIN}/ibmmq/console/

Troubleshooting Reference

Conclusion: The Deployment Journey Complete

This end-to-end journey has established a resilient, high-availability foundation for global order orchestration. By combining the automated intelligence of the IBM Sterling OMS Operator with the robust scalability of Red Hat OpenShift and the secure connectivity of IBM Cloud VPC, the organization is now equipped to handle enterprise-scale demand.

Operational high-value components:

• Elastic Scaling: Kubernetes-native app and agent tiers.
• Modernized UIs: React-based OrderHub and Call Center environments.
• Hardened Data Tier: Private DB2 connectivity via VPE and dedicated MQ messaging.
• Full Lifecycle Management: Operator-driven maintenance for long-term stability.
